Cornell Dubilier Electronics (CDE)

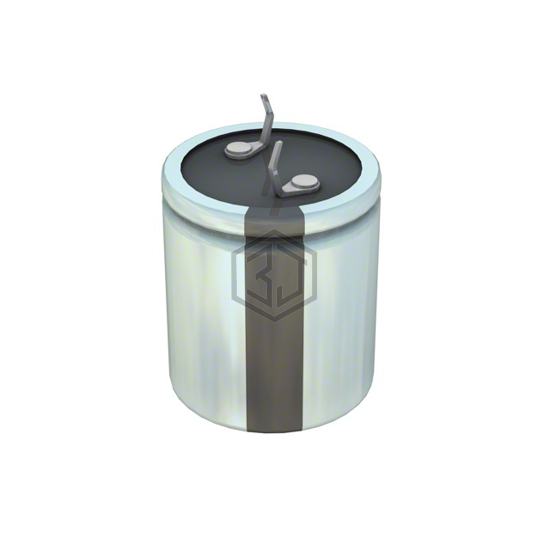

CAP ALUM 56UF 20% 450V SNAP
LPX560M450A1P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 56UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,472
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 3.553Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 500 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXL451ELL560MM20S | United Chemi-Con | CAP ALUM 56UF 20% 450V RADIAL TH | 82% | View |
| EKXL421ELL560MK35S | United Chemi-Con | CAP ALUM 56UF 20% 420V RADIAL TH | 79% | View |
| EKXJ451ELL560MM25S | United Chemi-Con | CAP ALUM 56UF 20% 450V RADIAL | 77% | View |
| 450BXW56MEFR18X25 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 77% | View |
| EKXJ351ELL560ML20S | United Chemi-Con | CAP ALUM 56UF 20% 350V RADIAL | 75% | View |
| UBX2A560MPL1TD | Nichicon | CAP ALUM 56UF 20% 100V RADIAL | 67% | View |
Submit your RFQ for LPX560M450A1P3 and get a quote within 24 hours.
