Cornell Dubilier Electronics (CDE)
CAP ALUM 470UF 20% 250V SNAP

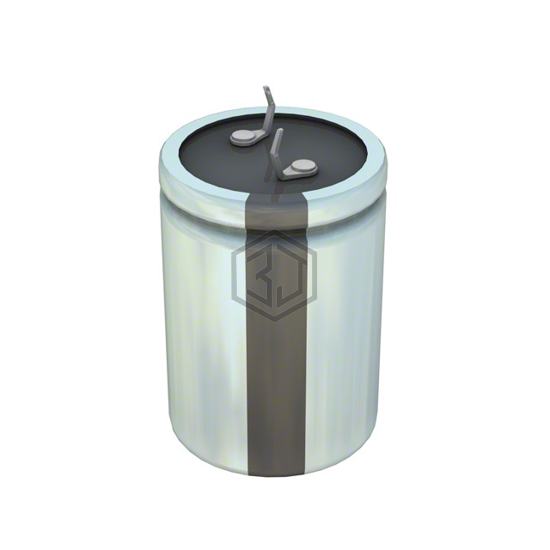

LPX471M250C5P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 470UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 1,477
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 423mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.31 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200USC470MEFC22X30 | Rubycon | CAP ALUM 470UF 20% 200V SNAP | 86% | View |
| MAL205758471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 385V SNAP | 78% | View |
| LGN2Z471MELY35 | Nichicon | CAP ALUM 470UF 20% 180V SNAP | 77% | View |
| MAL225917471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 450V SNAP | 69% | View |
| MAL212018471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V AXIAL | 64% | View |
| MAL209669471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 500V RADIAL | 57% | View |
Submit your RFQ for LPX471M250C5P3 and get a quote within 24 hours.
