Cornell Dubilier Electronics (CDE)
CAP ALUM 390UF 20% 350V SNAP

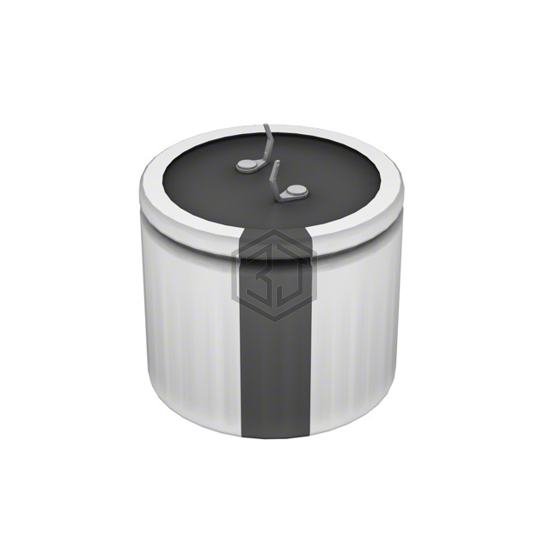

LPX391M350H3P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 390UF 20% 350V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Snap-In.
In Stock: 9,345
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 510mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.92 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43501A397M62 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 420V SNAP | 82% | View |
| LGN2P391MELZ30 | Nichicon | CAP ALUM 390UF 20% 220V SNAP | 81% | View |
| LGN2D391MELY30 | Nichicon | CAP ALUM 390UF 20% 200V SNAP | 78% | View |
| LGU2D391MELZ | Nichicon | CAP ALUM 390UF 20% 200V SNAP | 78% | View |
| MAL225912391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 200V SNAP | 73% | View |
| B43540B2397M82 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 200V SNAP | 72% | View |
Submit your RFQ for LPX391M350H3P3 and get a quote within 24 hours.
