Cornell Dubilier Electronics (CDE)

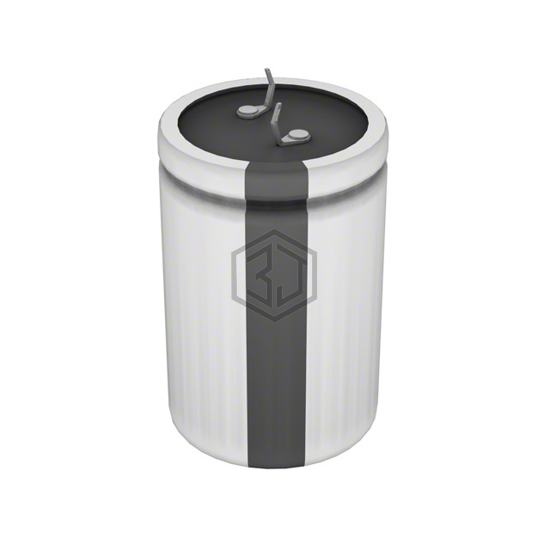

CAP ALUM 270UF 20% 450V SNAP
LPX271M450E4P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 270UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 8,421
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 737mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.04 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504B5277M82 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 450V SNAP | 94% | View |
| B43504B5277M80 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 450V SNAP | 94% | View |
| B43601C9277M80 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 400V SNAP | 93% | View |
| ELHS451VSN271MA25S | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 89% | View |
| B43255A4277M | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 350V SNAP | 83% | View |
| UCY2E271MHD | Nichicon | CAP ALUM 270UF 20% 250V RADIAL | 70% | View |
