Cornell Dubilier Electronics (CDE)
CAP ALUM 120UF 20% 400V SNAP

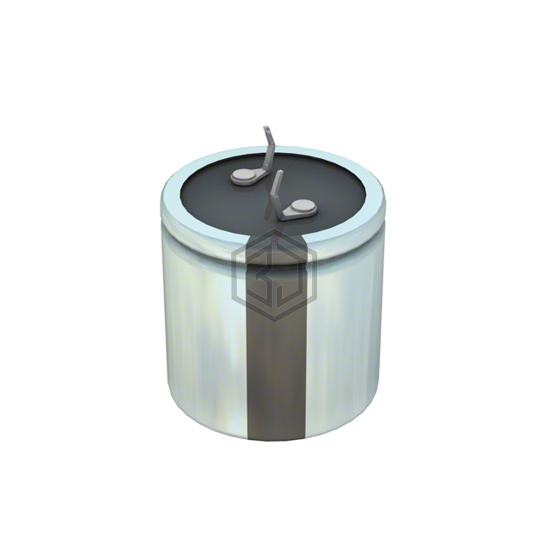

LPX121M400C1P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 120UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 9,376
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 1.658Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 840 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400TXW120MEFR18X30 | Rubycon | CAP ALUM 120UF 20% 400V RAD TH | 100% | View |
| EKWB401ELL121MK45S | Chemi-Con | CAP ALUM 120UF 20% 400V TH | 88% | View |
| MAL225966121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 400V SNAP | 82% | View |
| 450LXW120MEFR14.5X50 | Rubycon | CAP ALUM 120UF 20% 450V RADIAL | 73% | View |
| 63ZL120MEFCTA8X20 | Rubycon | CAP ALUM 120UF 20% 63V RADIAL | 54% | View |
| EEU-TP1V121B | Panasonic Electronic Components | CAP ALUM 120UF 20% 35V RADIAL | 52% | View |
