Cornell Dubilier Electronics (CDE)
CAP ALUM 6800UF 20% 63V SNAP

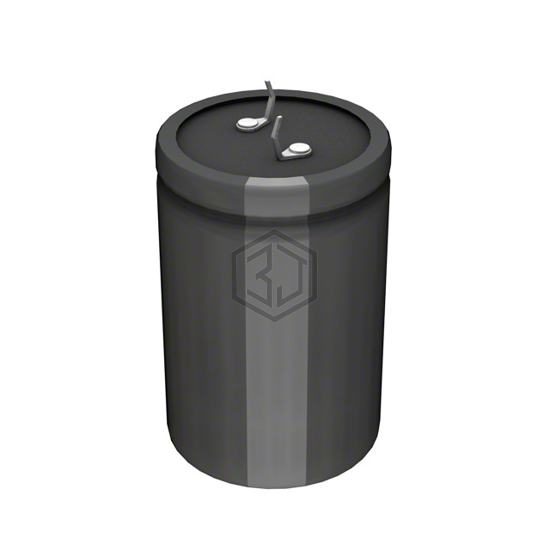

LPW682M1JP45V-W is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 6800UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 3,841
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 73mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.54 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.248 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LPW682M1JP45V-W is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH630VSN682MQ50U | United Chemi-Con | CAP ALUM 6800UF 20% 63V SNAP | 91% | View |
| ESMH500VSN682MQ40S | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 90% | View |
| ELXG500VSN682MA40S | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 79% | View |
| 6.3YXG6800MEFCG412.5X40 | Rubycon | CAP ALUM 6800UF 20% 6.3V RADIAL | 63% | View |
| ELXZ6R3ELL682MK40S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V RADIAL | 61% | View |
| ESMH101VNN682MA50S | United Chemi-Con | CAP ALUM 6800UF 20% 100V SNAP | 57% | View |
Submit your RFQ for LPW682M1JP45V-W and get a quote within 24 hours.
