Cornell Dubilier Electronics (CDE)
CAP ALUM 4700UF 20% 25V SNAP

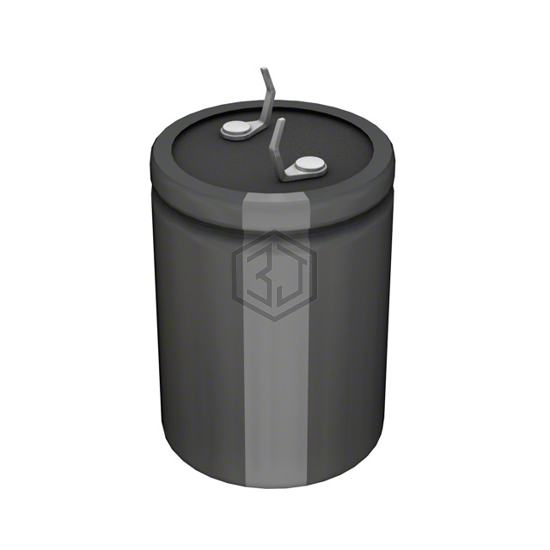

LPW472M1EN30V-W is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4700UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 5,777
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 159mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.49 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.739 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LPW472M1EN30V-W is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1E472MESCBK | Nichicon | CAP ALUM 4700UF 20% 25V SNAP | 96% | View |
| 478LBA035M2CC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 35V SNAP | 87% | View |
| 381LX472M035H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 35V SNAP | 82% | View |
| 478LBB050M2BE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 50V SNAP | 72% | View |
| LKS1H472MESY | Nichicon | CAP ALUM 4700UF 20% 50V SNAP | 71% | View |
| ELH478M080AS3AA | KEMET | CAP ALUM 4700UF 20% 80V SNAP | 56% | View |
Submit your RFQ for LPW472M1EN30V-W and get a quote within 24 hours.
