Cornell Dubilier Electronics (CDE)
CAP ALUM 4700UF 20% 16V SNAP

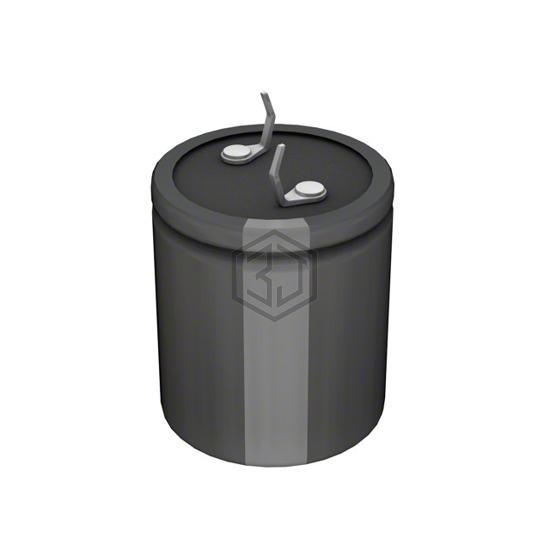

LPW472M1CN25V-W is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4700UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 6,486
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 141mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.81 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.991 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LPW472M1CN25V-W is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860160278044 | Würth Elektronik | CAP ALUM 4700UF 20% 10V RADIAL | 73% | View |
| EKMQ500ELL472MN40S | United Chemi-Con | CAP ALUM 4700UF 20% 50V RADIAL | 72% | View |
| MAL205054472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 10V RADIAL | 71% | View |
| EKMH500VSN472MR30S | United Chemi-Con | CAP ALUM 4700UF 20% 50V SNAP | 69% | View |
| THA462M030AB1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 4600UF 20% 30V FLATPACK | 67% | View |
| MAL212544472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V AXIAL | 63% | View |
Submit your RFQ for LPW472M1CN25V-W and get a quote within 24 hours.
