Cornell Dubilier Electronics (CDE)
CAP ALUM 3300UF 20% 25V SNAP

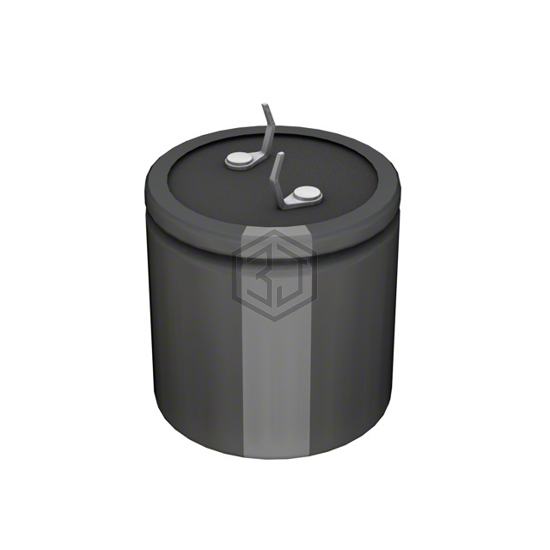

LPW332M1EO25V-W is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3300UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 9,553
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 176mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.299 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LPW332M1EO25V-W is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25YXJ3300M16X25 | Rubycon | CAP ALUM 3300UF 20% 25V RADIAL | 91% | View |
| 35YXF3300MEFC18X35.5 | Rubycon | CAP ALUM 3300UF 20% 35V RADIAL | 85% | View |
| MAL226065332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V RADIAL | 74% | View |
| EKZG6R3ELL332MJ25S | United Chemi-Con | CAP ALUM 3300UF 20% 6.3V RADIAL | 74% | View |
| LGY1K332MELA45 | Nichicon | CAP ALUM 3300UF 20% 80V SNAP | 71% | View |
| 338RZM016M1820 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 16V RADIAL | 71% | View |
