Cornell Dubilier Electronics (CDE)
CAP ALUM 3300UF 20% 25V SNAP

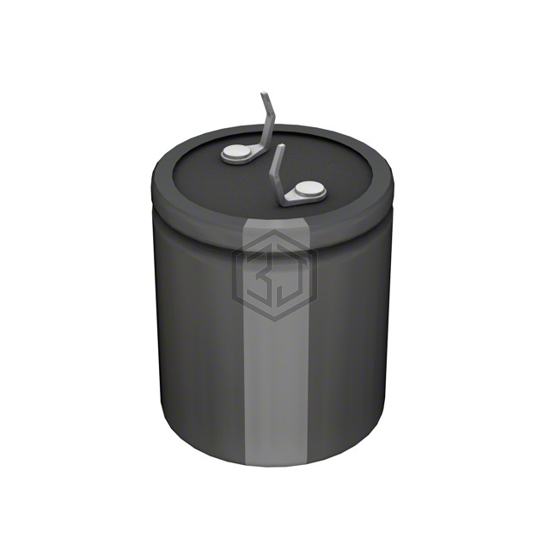

LPW332M1EN25V-W is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3300UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 6,031
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 176mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.03 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.233 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LPW332M1EN25V-W is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41888A7338M | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 35V RADIAL | 75% | View |
| 16YK3300MEFCG412.5X20 | Rubycon | CAP ALUM 3300UF 20% 16V RADIAL | 71% | View |
| 381LX332M080K042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 80V SNAP | 66% | View |
| 80MXG3300MEFCSN22X50 | Rubycon | CAP ALUM 3300UF 20% 80V SNAP | 65% | View |
| MAL205841332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 50V SNAP | 58% | View |
| EKMH101VSN332MA40S | United Chemi-Con | CAP ALUM 3300UF 20% 100V SNAP | 54% | View |
Submit your RFQ for LPW332M1EN25V-W and get a quote within 24 hours.
