Cornell Dubilier Electronics (CDE)

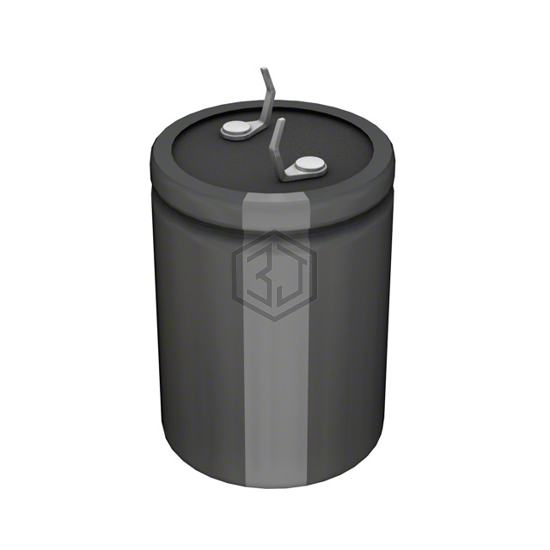

CAP ALUM 2200UF 20% 63V SNAP
LPW222M1JN30V-W is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2200UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 2,970
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 226mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.496 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LPW222M1JN30V-W is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225068222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 63V RADIAL | 92% | View |
| LKG1H222MESACK | Nichicon | CAP ALUM 2200UF 20% 50V SNAP | 83% | View |
| EKYA350ELL222ML25S | United Chemi-Con | CAP ALUM 2200UF 20% 35V RADIAL | 77% | View |
| 100USC2200MEFCSN22X50 | Rubycon | CAP ALUM 2200UF 20% 100V SNAP | 70% | View |
| MAL205159222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 100V RADIAL | 62% | View |
| EGPD350ELL222MK30H | United Chemi-Con | CAP ALUM 2200UF 20% 35V RADIAL | 57% | View |
Submit your RFQ for LPW222M1JN30V-W and get a quote within 24 hours.
