Cornell Dubilier Electronics (CDE)
CAP ALUM 15000UF 20% 35V SNAP

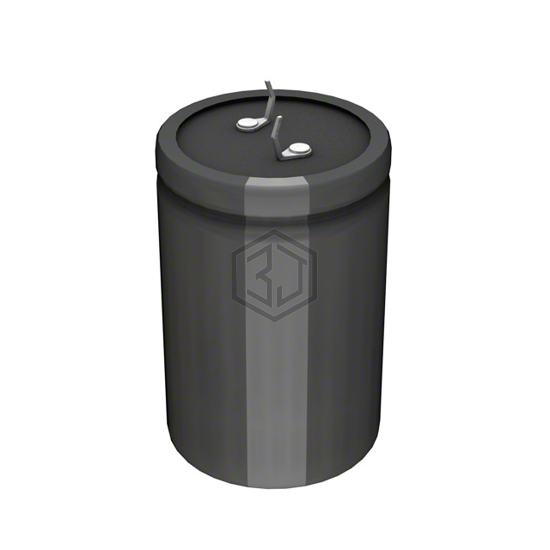

LPW153M1VP45V-W is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 15000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 1,369
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 39mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.488 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LPW153M1VP45V-W is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ153M035K042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 35V SNAP | 99% | View |
| LKG1V153MESBAK | Nichicon | CAP ALUM 15000UF 20% 35V SNAP | 98% | View |
| ESMH350VNN153MQ50U | United Chemi-Con | CAP ALUM 15000UF 20% 35V SNAP | 95% | View |
| MAL205676153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 25V SNAP | 81% | View |
| LLS1C153MELB | Nichicon | CAP ALUM 15000UF 20% 16V SNAP | 76% | View |
| EKZN6R3ELL153MLP1S | United Chemi-Con | CAP ALUM 15000UF 20% 6.3V RADIAL | 75% | View |
Submit your RFQ for LPW153M1VP45V-W and get a quote within 24 hours.
