Cornell Dubilier Electronics (CDE)
CAP ALUM 12000UF 20% 25V SNAP

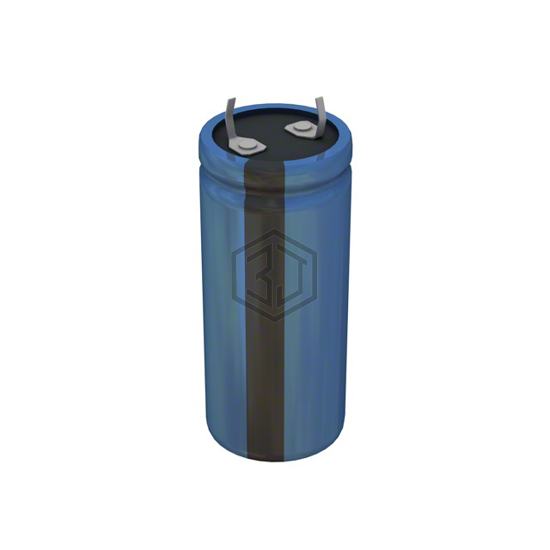

LPW123M1EN50V-W is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 12000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 1,781
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 62mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.74 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.114 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LPW123M1EN50V-W is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LX123M025K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 20% 25V SNAP | 95% | View |
| LGU1E123MELZ | Nichicon | CAP ALUM 12000UF 20% 25V SNAP | 85% | View |
| SLPX123M035E5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 20% 35V SNAP | 82% | View |
| EKZN100ELL123MMP1S | United Chemi-Con | CAP ALUM 12000UF 20% 10V RADIAL | 77% | View |
| 50MXC12000MEFCSN35X40 | Rubycon | CAP ALUM 12000UF 20% 50V SNAP | 68% | View |
| 63MXC12000MEFCSN35X50 | Rubycon | CAP ALUM 12000UF 20% 63V SNAP | 66% | View |
Submit your RFQ for LPW123M1EN50V-W and get a quote within 24 hours.
