Cornell Dubilier Electronics (CDE)

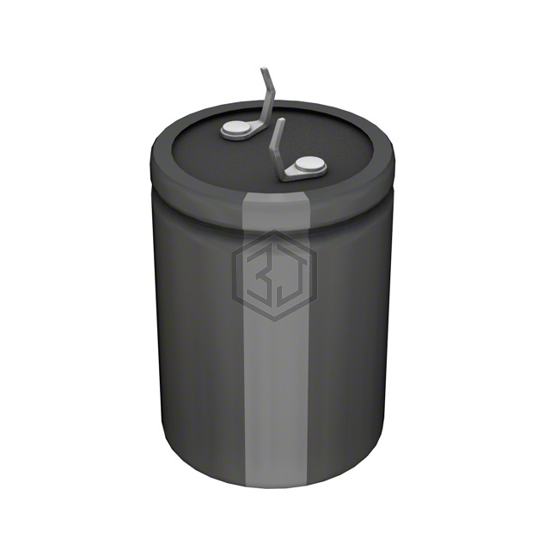

CAP ALUM 10000UF 20% 10V SNAP
LPW103M1AN30V-W is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 10000UF 20% 10V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - Snap-In.
In Stock: 6,411
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 83mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.69 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.959 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LPW103M1AN30V-W is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SK103M016ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 16V RADIAL | 86% | View |
| UPA0J103MHD6TN | Nichicon | CAP ALUM 10000UF 20% 6.3V RADIAL | 83% | View |
| 109CKS6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 6.3V RADIAL | 79% | View |
| URZ1A103MHD1TN | Nichicon | CAP ALUM 10000UF 20% 10V RADIAL | 79% | View |
| LKG1C103MESCCK | Nichicon | CAP ALUM 10000UF 20% 16V SNAP | 72% | View |
| 109LBB035M2EC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 35V SNAP | 70% | View |
Submit your RFQ for LPW103M1AN30V-W and get a quote within 24 hours.
