Cornell Dubilier Electronics (CDE)
CAP ALUM 3300UF 20% 63V SNAP

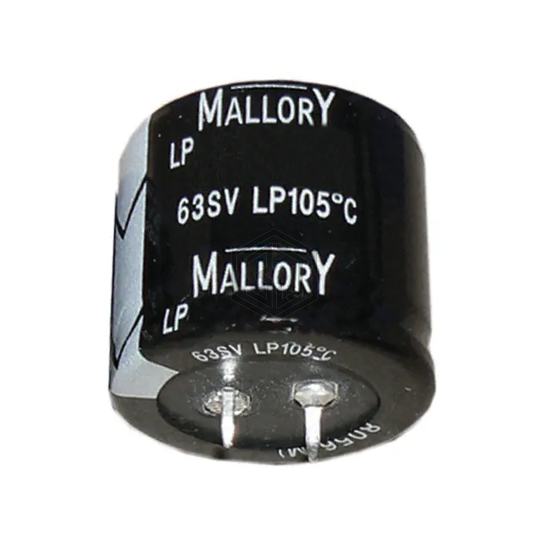

LP332M063H3P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3300UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 2,825
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 76mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.64 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ332M063H042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 63V SNAP | 95% | View |
| LGY1K332MELC30 | Nichicon | CAP ALUM 3300UF 20% 80V SNAP | 90% | View |
| EEU-TA1C332S | Panasonic Electronic Components | CAP ALUM 3300UF 20% 16V RADIAL | 75% | View |
| EKZN250ELL332MM20S | United Chemi-Con | CAP ALUM 3300UF 20% 25V RADIAL | 69% | View |
| 100MXC3300MEFC30X45 | Rubycon | CAP ALUM 3300UF 20% 100V SNAP | 68% | View |
| EEU-HD1V332B | Panasonic Electronic Components | CAP ALUM 3300UF 20% 35V RADIAL | 66% | View |
