Cornell Dubilier Electronics (CDE)

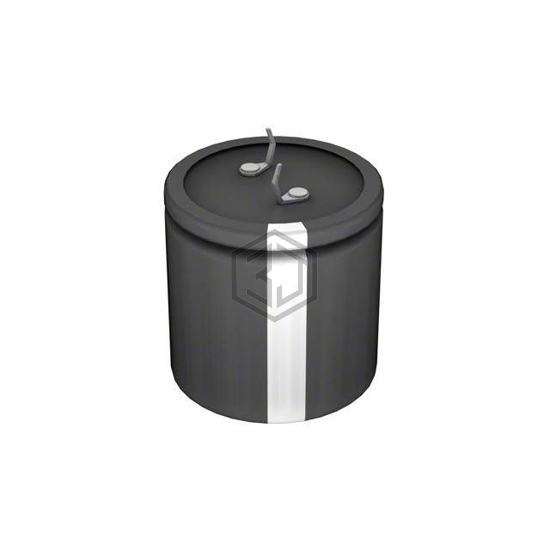

CAP ALUM 3300UF 20% 50V SNAP
LP332M050E3P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3300UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 1,603
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 101mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.76 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.936 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215857332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 40V SNAP | 77% | View |
| EKZN6R3ELL332MJ25S | United Chemi-Con | CAP ALUM 3300UF 20% 6.3V RADIAL | 74% | View |
| ELXV160EMC332MM20S | United Chemi-Con | CAP ALUM 3300UF 20% 16V RADIAL | 73% | View |
| ELXV100ELL332MK35S | United Chemi-Con | CAP ALUM 3300UF 20% 10V RADIAL | 73% | View |
| 338KXM010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 10V RADIAL | 66% | View |
| MAL215036332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 25V RADIAL | 64% | View |
Submit your RFQ for LP332M050E3P3 and get a quote within 24 hours.
