Cornell Dubilier Electronics (CDE)

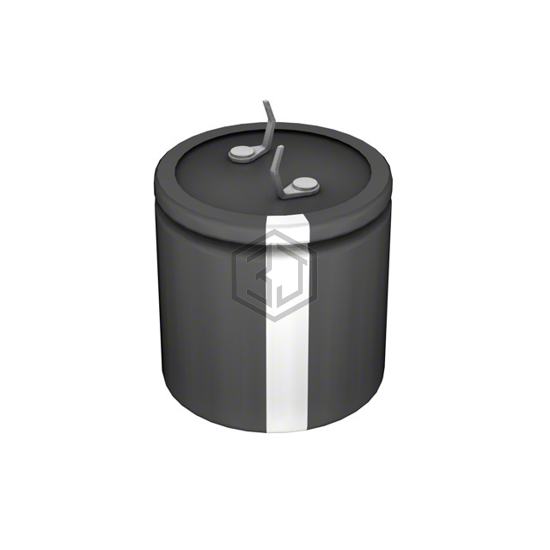

CAP ALUM 2700UF 20% 35V SNAP
LP272M035C1P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2700UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 8,536
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 155mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.257 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.3827 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH500VSN272MP30U | United Chemi-Con | CAP ALUM 2700UF 20% 50V SNAP | 75% | View |
| 860020378022 | Würth Elektronik | CAP ALUM 2700UF 20% 16V RADIAL | 75% | View |
| B41895B7278M | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 35V RADIAL | 71% | View |
| MAL224696276E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 25V RADIAL | 68% | View |
| MAL213665272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 16V RADIAL | 67% | View |
| EEU-TP1V272 | Panasonic Electronic Components | CAP ALUM 2700UF 20% 35V RADIAL | 63% | View |
