Cornell Dubilier Electronics (CDE)

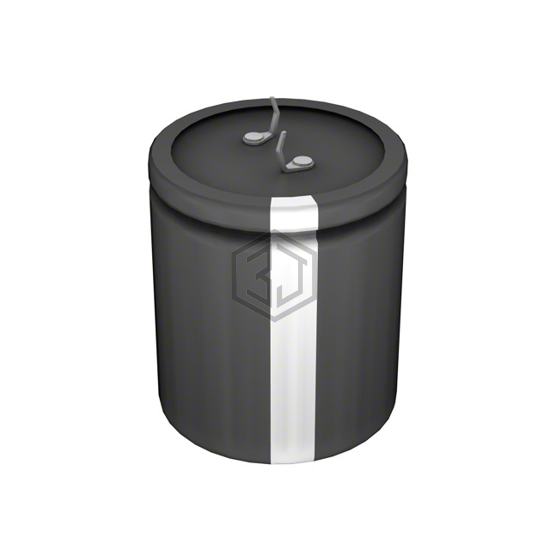

CAP ALUM 2200UF 20% 100V SNAP
LP222M100H7P3 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 138
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 113mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.03 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.436 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH101VNN222MR40W | United Chemi-Con | CAP ALUM 2200UF 20% 100V SNAP | 86% | View |
| EKMH101VSN222MR40S | United Chemi-Con | CAP ALUM 2200UF 20% 100V SNAP | 86% | View |
| MAL205848222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 63V SNAP | 76% | View |
| EY1C222MP51023F6 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 70% | View |
| 10ZT2200MG412.5X25 | Rubycon | CAP ALUM 2200UF 20% 10V RADIAL | 57% | View |
| LGG2D222MELC40 | Nichicon | CAP ALUM 2200UF 20% 200V SNAP | 56% | View |
Submit your RFQ for LP222M100H7P3 and get a quote within 24 hours.
