Cornell Dubilier Electronics (CDE)

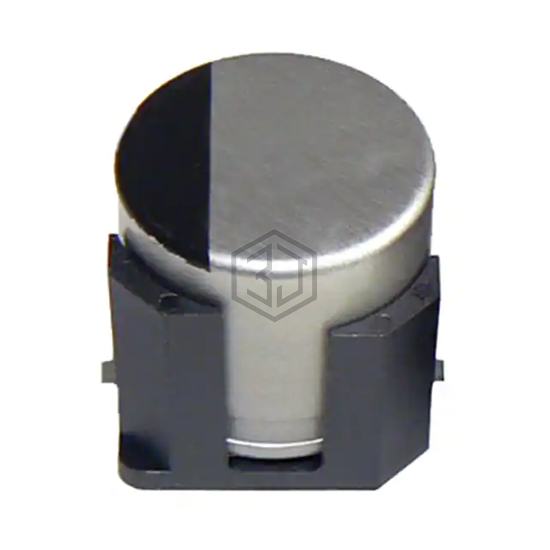

CAP ALUM POLY HYB 220UF 25V SMD
HZC227M025F24VT-F is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM POLY HYB 220UF 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,396
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HHXC250GRA221MHA0G | Chemi-Con | CAP ALUMHYB 220UF 20% 25V SMD | 94% | View |
| EEH-ZL1E221XV | Panasonic Electronic Components | CAP ALUMHYB 220UF 20% 25V SMD | 87% | View |
| HHXC250ARA271MJA0G | United Chemi-Con | CAP ALUM POLY 270UF 20% 25V SMD | 82% | View |
| EEH-ZT1V221UP | Panasonic Electronic Components | CAP ALUMHYB 220UF 20% 35V SMD | 74% | View |
| EEH-ZC1V221P | Panasonic Electronic Components | CAP ALUM HYBRD 220UF 20% 35V SMD | 69% | View |
| 35PFV270M10X10.5 | Rubycon | CAP ALUM POLY HYB 270UF 35V SMD | 65% | View |
