Cornell Dubilier Electronics (CDE)

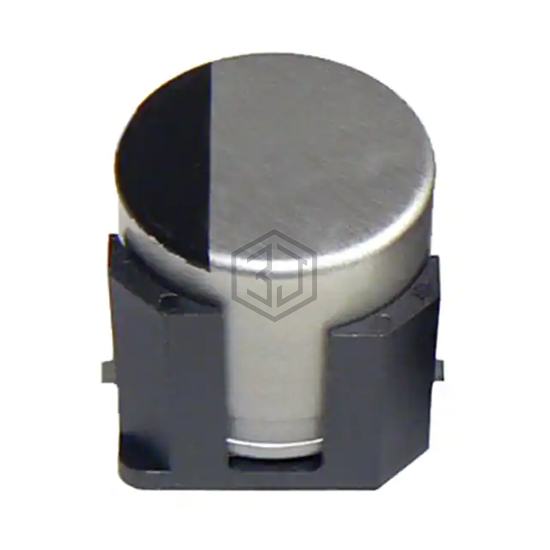

CAP ALUM POLY HYB 56UF 63V SMD
HZA566M063G24VT-F is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM POLY HYB 56UF 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 9,940
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for HZA566M063G24VT-F and get a quote within 24 hours.
