Cornell Dubilier Electronics (CDE)
CAP ALUM POLY HYB 33UF 25V SMD

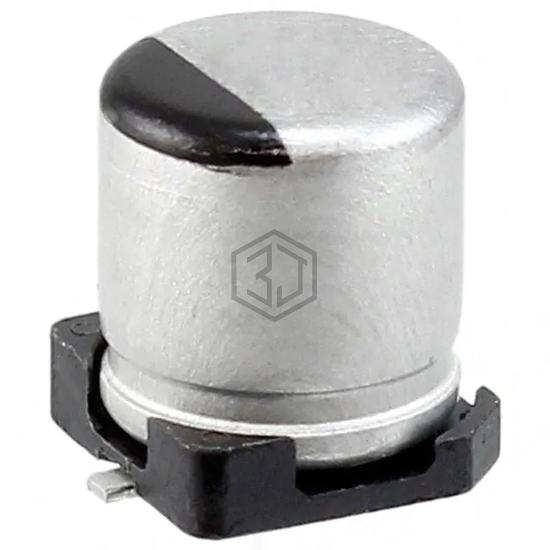

HZA336M025C12T-F is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM POLY HYB 33UF 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,698
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 80mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218297601E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY HYB 33UF 25V SMD | 100% | View |
| RSHV1330M1TCC8002E | Taiyo Yuden | CAP ALUM HYBRID 33UF 20% 25V SMD | 100% | View |
| HHXD500ARA330MF80G | United Chemi-Con | CAP ALUM HYBRID 33UF 20% 50V SMD | 60% | View |
| GYA1J330MCW1GS | Nichicon | CAP ALUM POLY HYB 33UF 63V SMD | 60% | View |
| MAL218297702E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY HYB 33UF 80V SMD | 51% | View |
| HZA336M050X16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY HYB 33UF 50V SMD | 51% | View |
Submit your RFQ for HZA336M025C12T-F and get a quote within 24 hours.
