Cornell Dubilier Electronics (CDE)

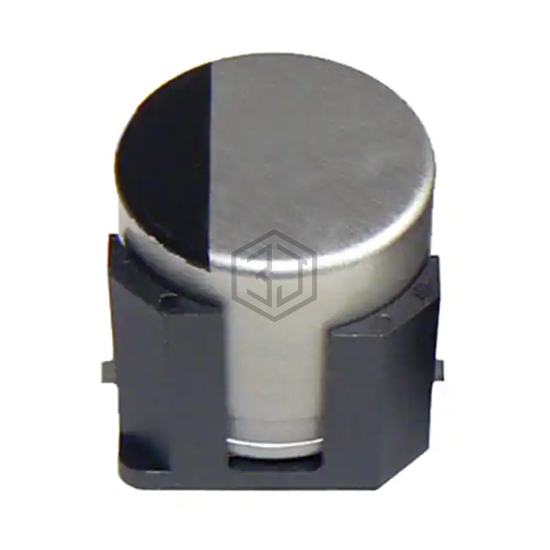

CAP ALUM POLY HYB 220UF 25V SMD
HZA227M025F24VT-F is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM POLY HYB 220UF 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 114
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 230 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for HZA227M025F24VT-F and get a quote within 24 hours.
