Cornell Dubilier Electronics (CDE)

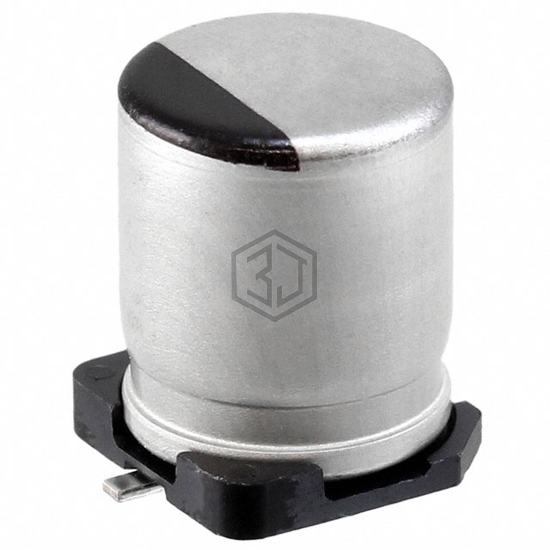

CAP ALUM POLY HYB 22UF 80V SMD
HZA226M080F24T-F is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM POLY HYB 22UF 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 1,195
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 155 mA @ 220 Hz |
| Ripple Current @ High Frequency | 1.55 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-ZA1J220XP | Panasonic Electronic Components | CAP ALUM POLY HYB 22UF 63V SMD | 91% | View |
| 63PEV22M6.3X8 | Rubycon | CAP ALUM POLY HYB 22UF 63V SMD | 85% | View |
| GYB1H220MCQ1GS | Nichicon | CAP ALUM POLY 22UF 20% 50V SMD | 76% | View |
| AHA0810220M063R | KYOCERA AVX | CAP ALUM POLY HYB 22UF 63V SMD | 75% | View |
| HZA226M050D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY HYB 22UF 50V SMD | 69% | View |
| GYA1H220MCQ1GS | Nichicon | CAP ALUM POLY 22UF 20% 50V SMD | 57% | View |
Submit your RFQ for HZA226M080F24T-F and get a quote within 24 hours.
