Cornell Dubilier Electronics (CDE)

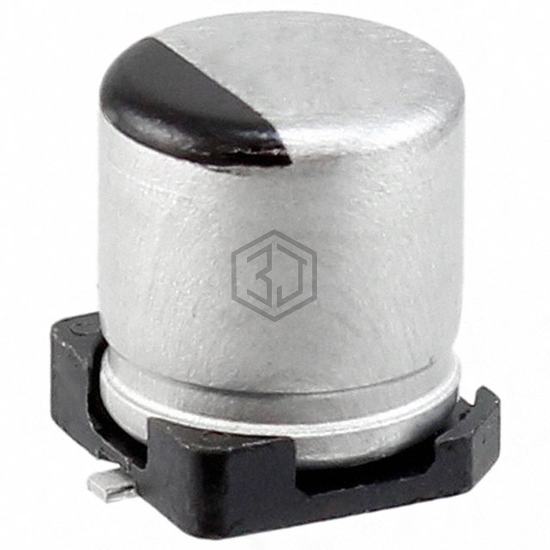

CAP ALUM POLY HYB 10UF 50V SMD
HZA106M050C12T-F is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM POLY HYB 10UF 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,111
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 120mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive, Bypass, Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-ZA1H100R | Panasonic Electronic Components | CAP ALUM POLY HYB 10UF 50V SMD | 100% | View |
| MAL218297101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY HYB 10UF 50V SMD | 100% | View |
| GYA1J100MCQ1GS | Nichicon | CAP ALUM POLY 10UF 20% 63V SMD | 88% | View |
| EEH-ZC1H100R | Panasonic Electronic Components | CAP ALUM POLY HYB 10UF 50V SMD | 81% | View |
| EEH-ZA1V100R | Panasonic Electronic Components | CAP ALUM POLY HYB 10UF 35V SMD | 80% | View |
| AHA1010100M125R | KYOCERA AVX | CAP ALUM POLY HYB 10UF 125V SMD | 62% | View |
Submit your RFQ for HZA106M050C12T-F and get a quote within 24 hours.
