Cornell Dubilier Electronics (CDE)

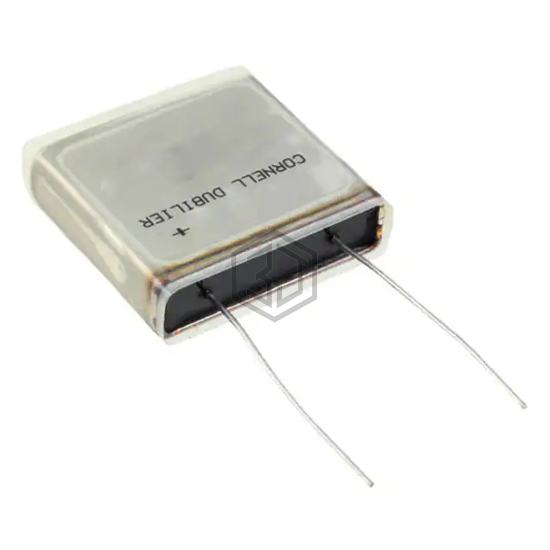

CAP ALUM 770UF 20% 100V FLATPACK
HVMLS771M100EA1C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 770UF 20% 100V FLATPACK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 100 V, package / case FlatPack.
In Stock: 4,199
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 770 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 238mOhm @ 120Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.8 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 1.000" (25.40mm) |
| Size / Dimension | 2.000" L x 1.750" W (50.80mm x 44.45mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | FlatPack |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MLS771M100EA1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 770UF 20% 100V FLATPACK | 100% | View |
| MLS771M100EA0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 770UF 20% 100V FLATPACK | 100% | View |
| MLSG771M100EA0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 770UF 20% 100V FLATPACK | 100% | View |
| HVMLS771M100EA0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 770UF 20% 100V FLATPACK | 100% | View |
| MLSH701M075JK0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 700UF 20% 75V RADIAL | 74% | View |
| MLSG801M100JH0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 800UF 20% 100V FLATPACK | 71% | View |
Submit your RFQ for HVMLS771M100EA1C and get a quote within 24 hours.
