Cornell Dubilier Electronics (CDE)

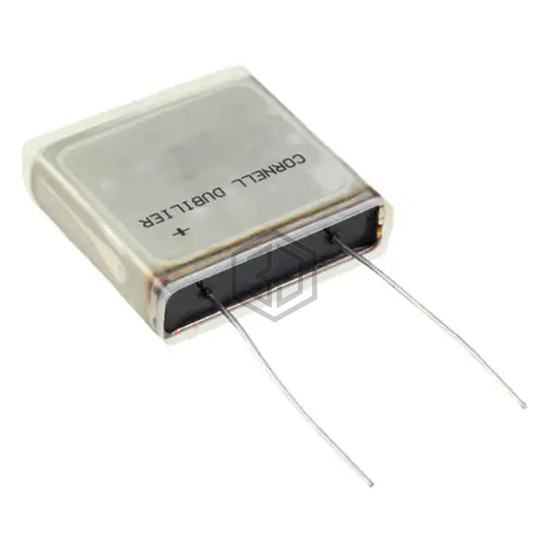

CAP ALUM 6800UF 20% 20V FLATPACK
HVMLS682M020EK1C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 6800UF 20% 20V FLATPACK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 20 V, package / case FlatPack.
In Stock: 2,859
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 84mOhm @ 120Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.2 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 1.000" (25.40mm) |
| Size / Dimension | 1.500" L x 1.750" W (38.10mm x 44.45mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | FlatPack |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HVMLS682M020EK0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 20V FLATPACK | 100% | View |
| B41696A5688Q7 | EPCOS - TDK Electronics | CAP ALUM 6800UF 25V AXIAL | 71% | View |
| B41605B0688M008 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 55V RADIAL | 64% | View |
| B41605A688M2 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 55V SNAP | 64% | View |
| B41605A0708M009 | EPCOS - TDK Electronics | CAP ALUM 7000UF 20% 55V RADIAL | 63% | View |
| B41896C4688M | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for HVMLS682M020EK1C and get a quote within 24 hours.
