Cornell Dubilier Electronics (CDE)

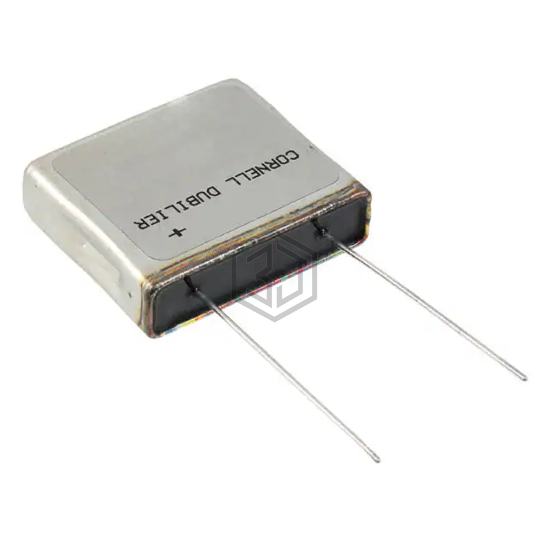

CAP ALUM 330UF 20% 200V FLATPACK
HVMLS331M200EK0C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 330UF 20% 200V FLATPACK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 200 V, package / case FlatPack.
In Stock: 1,492
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 426mOhm @ 120Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.2 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 1.000" (25.40mm) |
| Size / Dimension | 1.500" L x 1.750" W (38.10mm x 44.45mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | FlatPack |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HVMLS331M200EK1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 200V FLATPACK | 100% | View |
| MLSG301M250JH0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 300UF 20% 250V FLATPACK | 74% | View |
| MLSG281M200JA0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 280UF 20% 200V FLATPACK | 64% | View |
| MLSG301M150JA0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 300UF 20% 150V FLATPACK | 61% | View |
| MAL216060331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V RADIAL | 56% | View |
| MAL216036331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for HVMLS331M200EK0C and get a quote within 24 hours.
