Cornell Dubilier Electronics (CDE)
CAP ALUM 2700UF 20% 75V FLATPACK

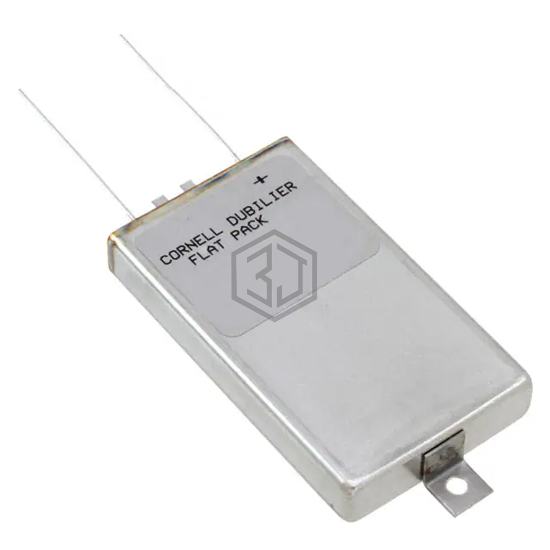

HVMLS272M075EB0A is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2700UF 20% 75V FLATPACK. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 125°C, voltage - rated 75 V, package / case FlatPack, Tabbed.
In Stock: 1,009
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 75 V |
| ESR (Equivalent Series Resistance) | 46mOhm @ 120Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 17.6 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 1.000" (25.40mm) |
| Size / Dimension | 3.000" L x 1.750" W (76.20mm x 44.45mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | FlatPack, Tabbed |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MLS272M075EB0A | Cornell Dubilier Electronics (CDE) | ALUM FLATPACK 2700UF 75V 20% | 100% | View |
| MLS272M075EB0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 2700UF 20% 75V FLATPACK | 100% | View |
| HVMLS272M075EB1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 2700UF 20% 75V FLATPACK | 100% | View |
| MLS272M075EB1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 2700UF 20% 75V FLATPACK | 100% | View |
| HVMLS272M075EB0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 2700UF 20% 75V FLATPACK | 100% | View |
| HVMLS272M075EB1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 2700UF 20% 75V FLATPACK | 100% | View |
