Cornell Dubilier Electronics (CDE)
CAP ALUM 2700UF 450V SCREW

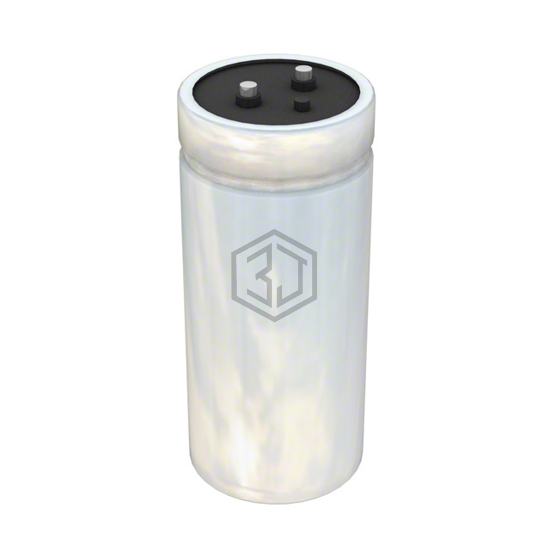

HES272G450W5L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2700UF 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,232
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | 0%, +50% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 34mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.177 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 5.625" (142.88mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNU2H272MSEH | Nichicon | CAP ALUM 2700UF 20% 500V SCREW | 94% | View |
| LNU2H272MSEHBN | Nichicon | CAP ALUM 2700UF 20% 500V SCREW | 94% | View |
| ALS81H272LM500 | KEMET | CAP ALUM 2700UF 20% 500V SCREW | 85% | View |
| LNU2G272MSEGBB | Nichicon | CAP ALUM 2700UF 20% 400V SCREW | 85% | View |
| LNU2W272MSEGBN | Nichicon | CAP ALUM 2700UF 20% 450V SCREW | 83% | View |
| LNU2W272MSEGBB | Nichicon | CAP ALUM 2700UF 20% 450V SCREW | 83% | View |
Submit your RFQ for HES272G450W5L and get a quote within 24 hours.
