Cornell Dubilier Electronics (CDE)

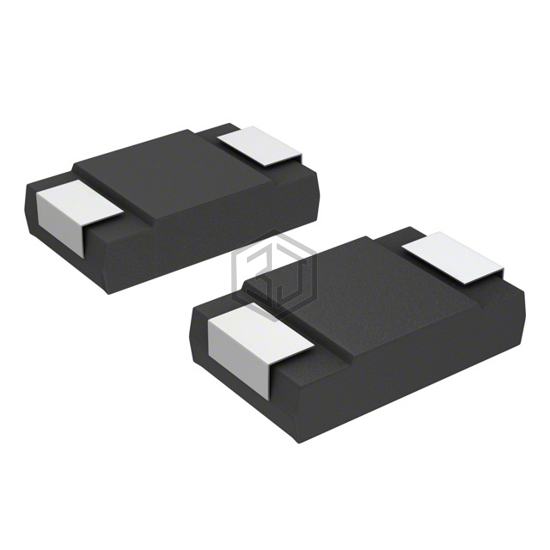

CAP ALUM POLY 10UF 20% 12.5V SMD
ESRD100M12B is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM POLY 10UF 20% 12.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 12.5 V, package / case 2917 (7343 Metric).
In Stock: 1,001
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 12.5 V |
| ESR (Equivalent Series Resistance) | 60mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
ESRD100M12B is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESRD100M12R | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY 10UF 20% 12.5V SMD | 100% | View |
| A700V106M12RATE060 | KEMET | CAP ALUM POLY 10UF 20% 12.5V SMD | 100% | View |
| A700V106M016ATE060 | KEMET | CAP ALUM POLY 10UF 20% 16V SMD | 84% | View |
| A700V106M12RATE040 | KEMET | CAP ALUM POLY 10UF 20% 12.5V SMD | 69% | View |
| A700V106M016ATE045 | KEMET | CAP ALUM POLY 10UF 20% 16V SMD | 61% | View |
| A700V825M016ATE045 | KEMET | CAP ALUM POLY 8.2UF 20% 16V SMD | 51% | View |
Submit your RFQ for ESRD100M12B and get a quote within 24 hours.
