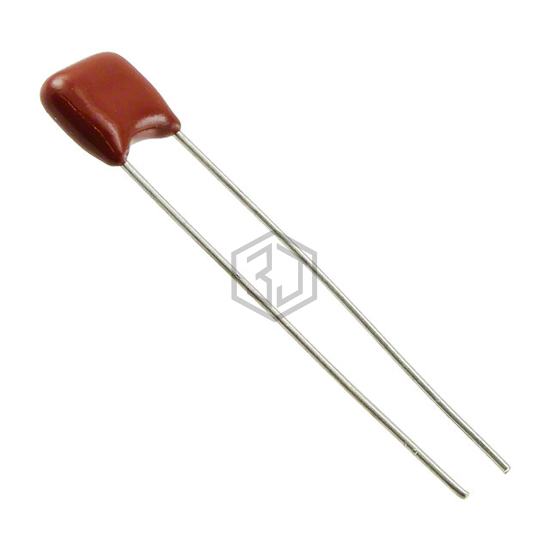

Cornell Dubilier Electronics (CDE)
CAP FILM 10000PF 5% 100VDC RAD
DSF100J103 is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 10000PF 5% 100VDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 100V, package / case Radial.
In Stock: 1,516
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 100V |
| Dielectric Material | Polyester, Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.295" L x 0.126" W (7.50mm x 3.20mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
DSF100J103 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP18443104000 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 20% 400VAC RAD | 100% | View |
| BFC246969103 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 5% 630VDC RAD | 71% | View |
| 72487-22 | Iskra | KNB1560 U01 20% 275V TR R10 | 71% | View |
| 17393-09 | Iskra | KNB2520 U01 20% 250V L25 R15 HF | 71% | View |
| 72653-22 | Iskra | KNB1530 U01 20% 275V L30 R15 | 71% | View |
| F17723102203 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 20% 630VDC RAD | 71% | View |
Submit your RFQ for DSF100J103 and get a quote within 24 hours.
