Cornell Dubilier Electronics (CDE)
CAP FILM 0.022UF 5% 50VDC RADIAL

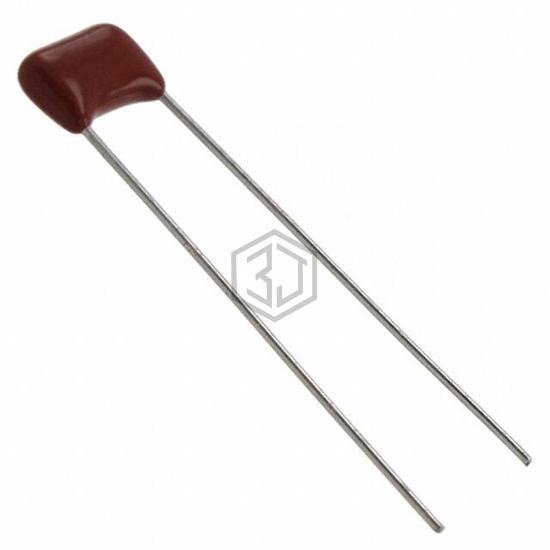

DSF050J223 is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 0.022UF 5% 50VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 50V, package / case Radial.
In Stock: 8,395
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.022 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 50V |
| Dielectric Material | Polyester, Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.287" L x 0.126" W (7.30mm x 3.20mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.197" (5.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
DSF050J223 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1837322161G | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 1% 160VDC RAD | 79% | View |
| MKP1V022205I00MSSD | WIMA | CAP FILM 0.022UF 20% 2.5KVDC RAD | 71% | View |
| BFC233814223 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 20% 1KVDC RAD | 71% | View |
| 16864-06 | Iskra | KNB1560 U022 20% 275V L7.5 R7.5 | 71% | View |
| 74629-22 | Iskra | KNB1560 U022 20% 275V L30 R10 | 71% | View |
| MKP385E3221AJFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 1.6KVDC RAD | 71% | View |
Submit your RFQ for DSF050J223 and get a quote within 24 hours.
