Cornell Dubilier Electronics (CDE)

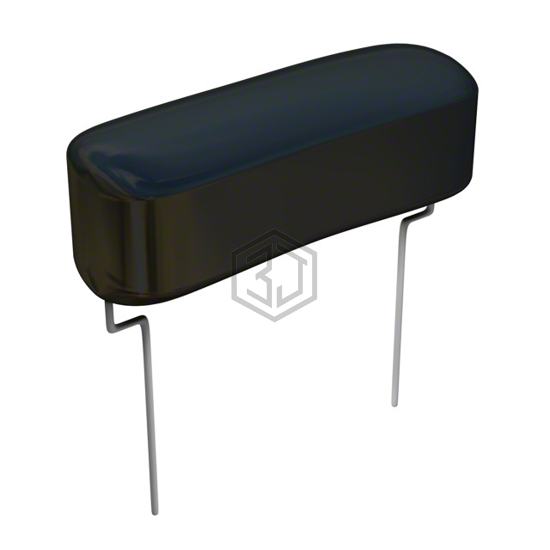

CAP FILM 0.039UF 5% 800VDC RAD
DPFF8S39J-F is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 0.039UF 5% 800VDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 800V, package / case Radial.
In Stock: 7,888
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.039 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 450V |
| Voltage Rating - DC | 800V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.701" L x 0.701" W (43.20mm x 17.80mm) |
| Height - Seated (Max) | 0.701" (17.80mm) |
| Termination | PC Pins |
| Lead Spacing | 1.094" (27.80mm) |
| Applications | High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| F340Y233930JFP2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.039UF 5% 1KVDC RAD | 92% | View |
| BFC238321393 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.039UF 5% 630VDC RAD | 87% | View |
| BFC247954393 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.039UF 5% 400VDC RAD | 79% | View |
| MKP385339040JC02G0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.039UF 5% 400VDC RAD | 79% | View |
| MKP385339250JKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.039UF 5% 2.5KVDC RAD | 75% | View |
| BFC236642393 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.039UF 5% 250VDC RAD | 70% | View |
Submit your RFQ for DPFF8S39J-F and get a quote within 24 hours.
