Cornell Dubilier Electronics (CDE)

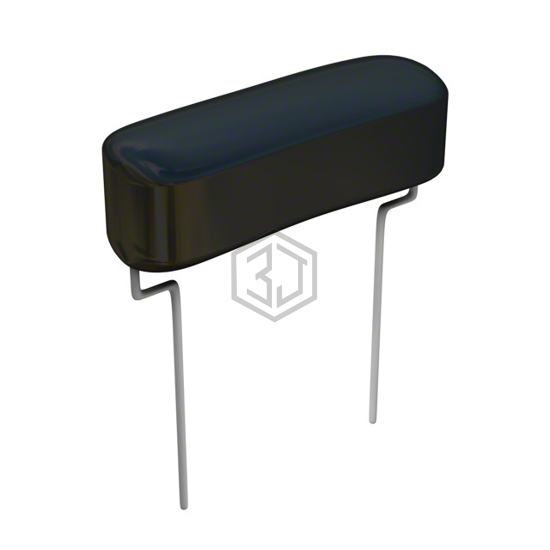

CAP FILM 1000PF 5% 1.6KVDC RAD
DPFF16D1J is a Film Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP FILM 1000PF 5% 1.6KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 1600V (1.6kV), package / case Radial.
In Stock: 5,266
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.252" L x 0.291" W (31.80mm x 7.40mm) |
| Height - Seated (Max) | 0.331" (8.40mm) |
| Termination | PC Pins |
| Lead Spacing | 0.720" (18.30mm) |
| Applications | High Pulse, DV/DT |
| Ratings | - |
| Features | - |
DPFF16D1J is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B32672L8102J000 | EPCOS - TDK Electronics | CAP FILM 1000PF 5% 2KVDC RADIAL | 92% | View |
| MKP385210200JDI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 5% 2KVDC RADIAL | 92% | View |
| MKP383210200JC02Z0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 5% 2KVDC RADIAL | 92% | View |
| BFC233868409 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 20% 1KVDC RADIAL | 86% | View |
| BFC237065103 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 10% 400VDC RAD | 70% | View |
| PHE426KJ4100JR05 | KEMET | CAP FILM 1000PF 5% 400VDC RADIAL | 70% | View |
Submit your RFQ for DPFF16D1J and get a quote within 24 hours.
