Cornell Dubilier Electronics (CDE)

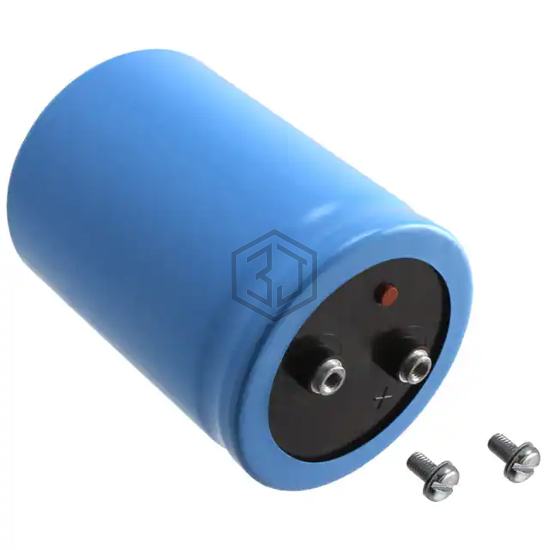

CAP ALUM 22000UF 75V SCREW
DCMC223U075AF2B is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22000UF 75V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 75 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,073
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 75 V |
| ESR (Equivalent Series Resistance) | 21.4mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.096 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 5.687" (144.45mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS80A223DF063 | KEMET | CAP ALUM 22000UF 20% 63V SCREW | 89% | View |
| E36D630HPN223TC92U | United Chemi-Con | CAP ALUM 22000UF 63V SCREW | 89% | View |
| LNT2A223MSE | Nichicon | CAP ALUM 22000UF 20% 100V SCREW | 88% | View |
| E36D630HPN223MAA5M | United Chemi-Con | CAP ALUM 22000UF 20% 63V SCREW | 87% | View |
| E32D500HPN223MA92U | United Chemi-Con | CAP ALUM 22000UF 20% 50V SCREW | 80% | View |
| E36D101HPN223MCD0U | United Chemi-Con | CAP ALUM 22000UF 20% 100V SCREW | 73% | View |
Submit your RFQ for DCMC223U075AF2B and get a quote within 24 hours.
