Cornell Dubilier Electronics (CDE)

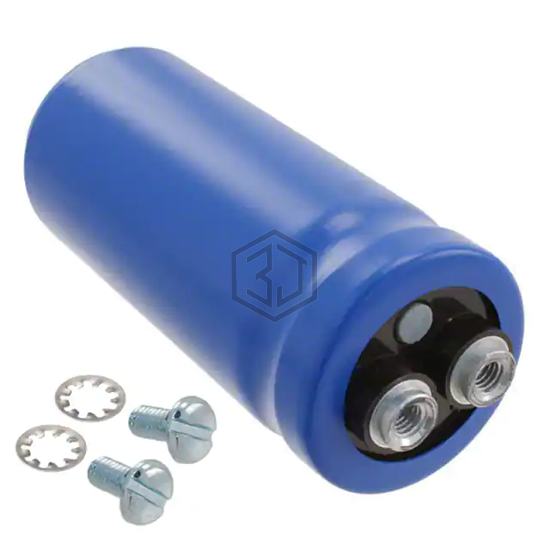

CAP ALUM 8900UF 25V SCREW
CGS892U025R3C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 8900UF 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8900 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 24mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.32 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for CGS892U025R3C and get a quote within 24 hours.
