Cornell Dubilier Electronics (CDE)

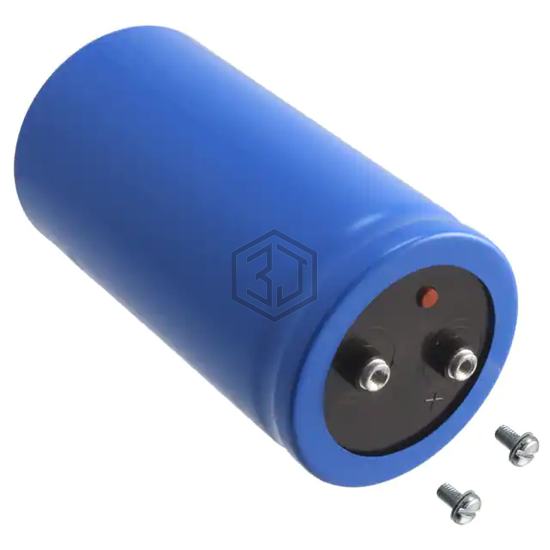

CAP ALUM 80000UF 16V SCREW
CGS803U016X4C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 80000UF 16V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,613
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 80000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 9mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 24.57 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CGS773U016V4L | Cornell Dubilier Electronics (CDE) | CAP ALUM 77000UF 16V SCREW | 76% | View |
| CGS793U050V5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 79000UF 50V SCREW | 75% | View |
| CGS783U030X4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 78000UF 30V SCREW | 74% | View |
| DCMC773U075CF2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 77000UF 75V SCREW | 74% | View |
| CGS783U040X6L | Cornell Dubilier Electronics (CDE) | CAP ALUM 78000UF 40V SCREW | 69% | View |
| DCMC813U050CJ2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 81000UF 50V SCREW | 64% | View |
Submit your RFQ for CGS803U016X4C and get a quote within 24 hours.
