Cornell Dubilier Electronics (CDE)

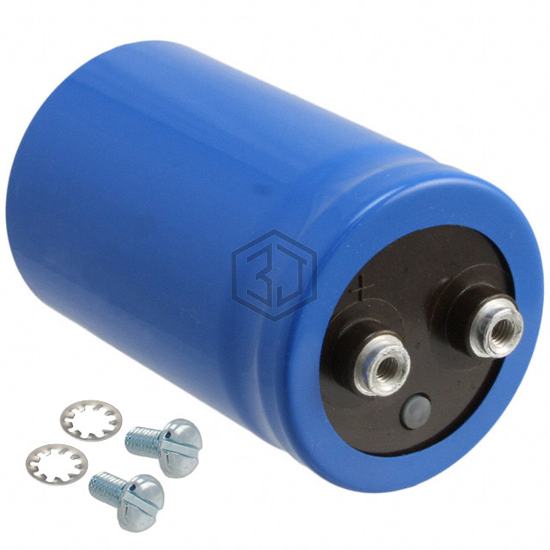

CAP ALUM 750UF 500V SCREW
CGS751T500U4C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 750UF 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,139
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 750 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 136mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.4 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.750" Dia (44.45mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D451LPN761TDD0U | United Chemi-Con | CAP ALUM 760UF 450V SCREW | 92% | View |
| ALS71A751DB350 | KEMET | CAP ALUM 750UF 20% 350V SCREW | 78% | View |
| ALS70A751DB350 | KEMET | CAP ALUM 750UF 20% 350V SCREW | 78% | View |
| CG751T200V3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 750UF 200V SCREW | 74% | View |
| ALS81A751DA250 | KEMET | CAP ALUM 750UF 20% 250V SCREW | 71% | View |
| ALS81H751DA250 | KEMET | CAP ALUM 750UF 20% 250V SCREW | 71% | View |
Submit your RFQ for CGS751T500U4C and get a quote within 24 hours.
