Cornell Dubilier Electronics (CDE)

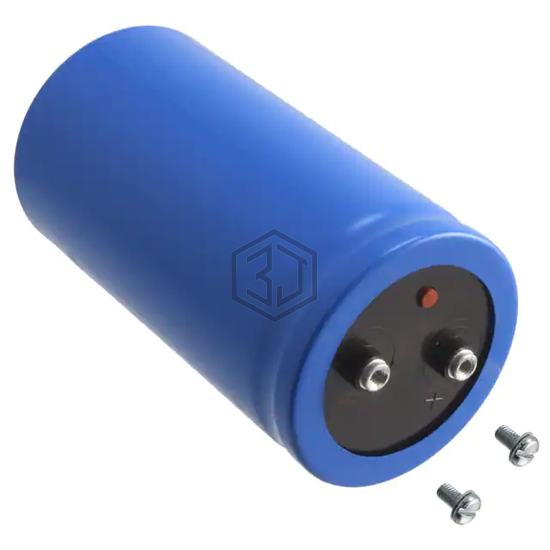

CAP ALUM 55000UF 75V SCREW
CGS553U075X8L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 55000UF 75V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 75 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,212
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 55000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 75 V |
| ESR (Equivalent Series Resistance) | 8mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 27.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 35.62 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 8.625" (219.08mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D800LGN563MEB7U | United Chemi-Con | CAP ALUM 56000UF 20% 80V SCREW | 94% | View |
| E32D630HPN563MCD0U | United Chemi-Con | CAP ALUM 56000UF 20% 63V SCREW | 89% | View |
| E36D800HPC563MDD0U | United Chemi-Con | CAP ALUM 56000UF 20% 80V SCREW | 80% | View |
| CGS553U063V5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 55000UF 63V SCREW | 65% | View |
| CGS553U040W5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 55000UF 40V SCREW | 58% | View |
| 36D543G030DF2A | Vishay Sprague | CAP ALUM 54000UF 30V SCREW | 54% | View |
