Cornell Dubilier Electronics (CDE)

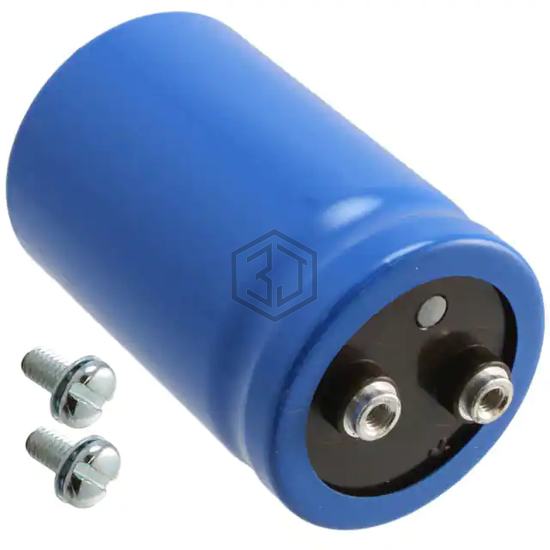

CAP ALUM 50000UF 25V SCREW
CGS503U025V5L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 50000UF 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,147
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 50000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 18mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 15.21 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 5.625" (142.88mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 36DX503G025CC2A | Vishay Sprague | CAP ALUM 50000UF 25V SCREW | 100% | View |
| CGS503U025W3L | Cornell Dubilier Electronics (CDE) | CAP ALUM 50000UF 25V SCREW | 88% | View |
| CGS503U016V3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 50000UF 16V SCREW | 86% | View |
| ALS80H513KE040 | KEMET | CAP ALUM 51000UF 20% 40V SCREW | 78% | View |
| CGR513U016W3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 51000UF 16V SCREW | 58% | View |
| DCMC503M125DF2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 50000UF 20% 125V SCREW | 56% | View |
