Cornell Dubilier Electronics (CDE)

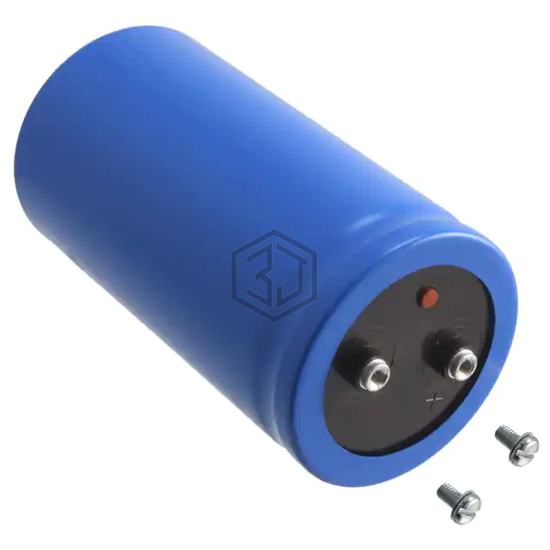

CAP ALUM 270000UF 25V SCREW
CGS274UHX5L3PD is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 270000UF 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,329
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 3mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30 A @ 120 Hz |
| Ripple Current @ High Frequency | 39 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.625" (142.88mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
CGS274UHX5L3PD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 36DY274F025DF2A | Vishay Sprague | CAP ALUM 270000UF 25V SCREW | 100% | View |
| ALS70A274QC025 | KEMET | CAP ALUM 270000UF 20% 25V SCREW | 82% | View |
| ALS71C274NJ040 | KEMET | CAP ALUM 270000UF 20% 40V SCREW | 78% | View |
| ALS70C274NJ040 | KEMET | CAP ALUM 270000UF 20% 40V SCREW | 78% | View |
| ALS70U274NJ040 | KEMET | CAP ALUM 270000UF 20% 40V SCREW | 78% | View |
| ALS70C274NF040 | KEMET | CAP ALUM 270000UF 20% 40V SCREW | 77% | View |
Submit your RFQ for CGS274UHX5L3PD and get a quote within 24 hours.
