Cornell Dubilier Electronics (CDE)
CAP ALUM 240UF 500V SCREW

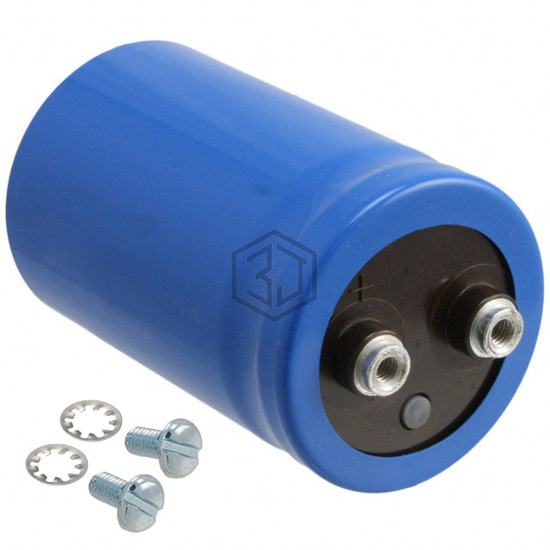

CGS241T500U2C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 240UF 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,839
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 240 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 416mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.4 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.750" Dia (44.45mm) |
| Height - Seated (Max) | 2.125" (53.98mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for CGS241T500U2C and get a quote within 24 hours.
