Cornell Dubilier Electronics (CDE)

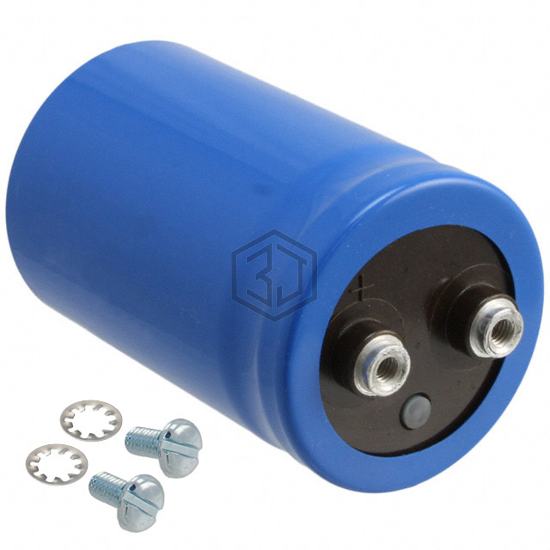

CAP ALUM 230000UF 6.3V SCREW
CGS234U6R3U4C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 230000UF 6.3V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,495
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 230000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 9mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 13.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 17.03 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.750" Dia (44.45mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNR1V224MSEB | Nichicon | CAP ALUM 220000UF 20% 35V SCREW | 68% | View |
| LNT1E224MSEB | Nichicon | CAP ALUM 220000UF 20% 25V SCREW | 61% | View |
| LNR1H224MSE | Nichicon | CAP ALUM 220000UF 20% 50V SCREW | 59% | View |
| DCMC234U075DG2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 230000UF 75V SCREW | 56% | View |
| 36DE234G015CF2A | Vishay Sprague | CAP ALUM 230000UF 15V SCREW | 56% | View |
| E36D250HPN244UDE3U | United Chemi-Con | CAP ALUM 240000UF 25V SCREW | 52% | View |
Submit your RFQ for CGS234U6R3U4C and get a quote within 24 hours.
