Cornell Dubilier Electronics (CDE)

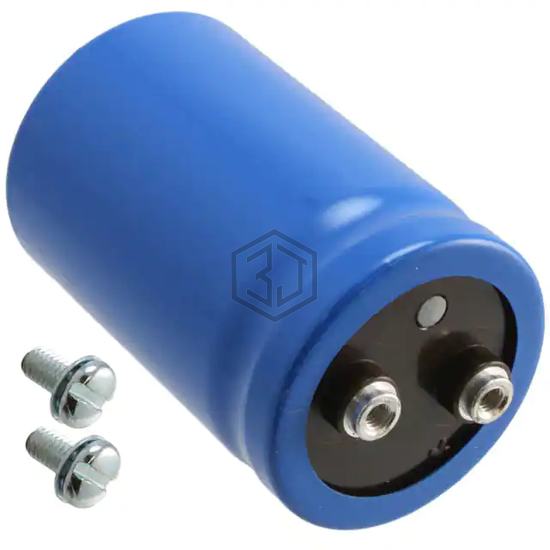

CAP ALUM 12000UF 100V SCREW
CGS123U100V3C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 12000UF 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,701
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 12000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 26mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 10.01 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CGS123U025R3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 25V SCREW | 77% | View |
| E36D151LPN123TED0M | United Chemi-Con | CAP ALUM 12000UF 150V SCREW | 74% | View |
| E36D161MLS123TDB7M | United Chemi-Con | CAP ALUM 12000UF 160V SCREW | 70% | View |
| CGS123U050R5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 50V SCREW | 63% | View |
| CGS123U016R2C | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 16V SCREW | 56% | View |
| E36D251LPN123MEM9U | United Chemi-Con | CAP ALUM 12000UF 20% 250V SCREW | 56% | View |
Submit your RFQ for CGS123U100V3C and get a quote within 24 hours.
