Cornell Dubilier Electronics (CDE)

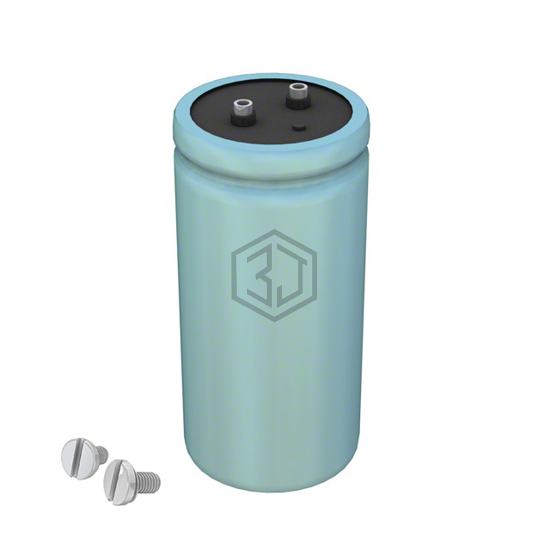

CAP ALUM 100000UF 12V SCREW
CGR104U012W5C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 100000UF 12V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 12 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,107
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100000 µF |
| Tolerance | -10%, +75% |
| Voltage - Rated | 12 V |
| ESR (Equivalent Series Resistance) | 4.3mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30 A @ 120 Hz |
| Ripple Current @ High Frequency | 34.5 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 5.125" (130.18mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS40C104QP063 | KEMET | CAP ALUM SCRW TERM 105C | 75% | View |
| E32D500HPN104MCE3N | United Chemi-Con | CAP ALUM 100000UF 20% 50V SCREW | 74% | View |
| E32D350HPN104MD79U | United Chemi-Con | CAP ALUM 100000UF 20% 35V SCREW | 63% | View |
| LNT2A104MSE | Nichicon | CAP ALUM 100000UF 20% 100V SCREW | 61% | View |
| LNT1J104MSEB | Nichicon | CAP ALUM 100000UF 20% 63V SCREW | 60% | View |
| B41580A7100M003 | EPCOS - TDK Electronics | CAP ALUM 100000UF 20% 40V SCREW | 55% | View |
