Cornell Dubilier Electronics (CDE)

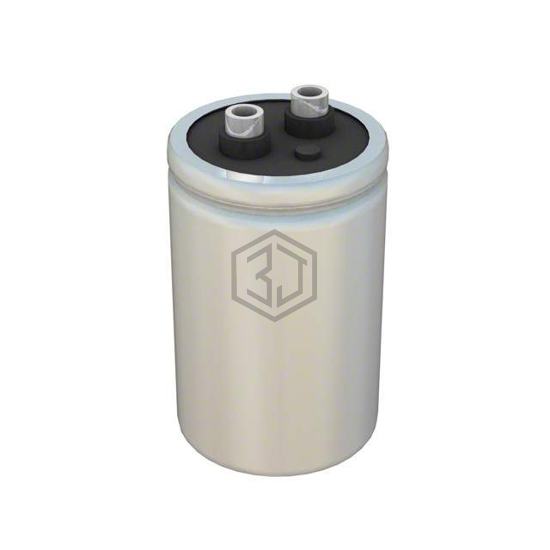

CAP ALUM 4500UF 20% 35V SCREW
CGO452M035L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 4500UF 20% 35V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Screw Terminals.
In Stock: 85
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 24mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.888 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.2 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 2.125" (53.98mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for CGO452M035L and get a quote within 24 hours.
