Cornell Dubilier Electronics (CDE)
CAP ALUM 3900UF 20% 55V SCREW

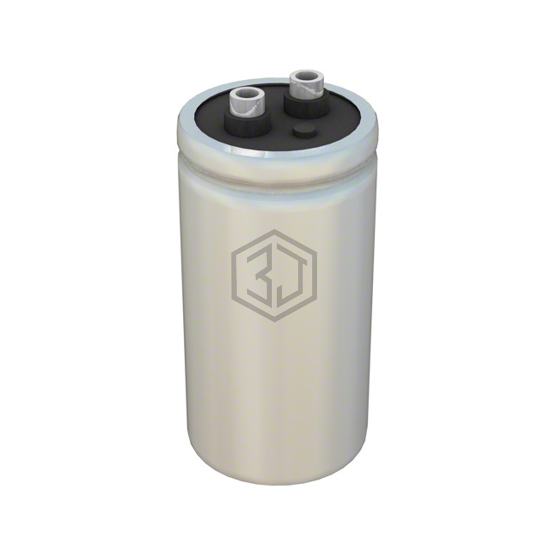

CGO392M055L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 3900UF 20% 55V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 55 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,915
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 55 V |
| ESR (Equivalent Series Resistance) | 23mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.56 A @ 120 Hz |
| Ripple Current @ High Frequency | 9 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 2.625" (66.68mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
CGO392M055L is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D500LPN392TA41N | United Chemi-Con | CAP ALUM 3900UF 50V SCREW | 94% | View |
| E36D3B1HPN392MDA5M | United Chemi-Con | CAP ALUM 3900UF 20% 315V SCREW | 73% | View |
| E36D201HPN392MC79M | United Chemi-Con | CAP ALUM 3900UF 20% 200V SCREW | 73% | View |
| DCMC392T450DC2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 450V SCREW | 64% | View |
| E36D451HPN392MDE3M | United Chemi-Con | CAP ALUM 3900UF 20% 450V SCREW | 59% | View |
| DCMC392U100AH2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 100V SCREW | 58% | View |
Submit your RFQ for CGO392M055L and get a quote within 24 hours.
