Cornell Dubilier Electronics (CDE)

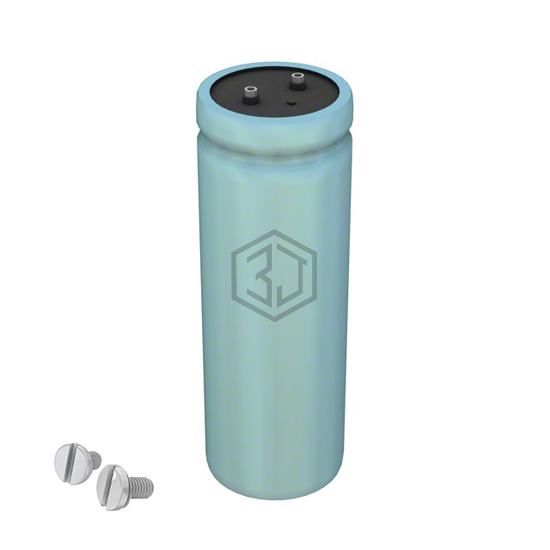

CAP ALUM 7700UF 450V SCREW
CGH772T450X8L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 7700UF 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,261
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 7700 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 17.3mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 22.386 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 8.625" (219.08mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DCMC772T450FP2D | Cornell Dubilier Electronics (CDE) | CAP ALUM 7700UF 450V SCREW | 98% | View |
| CGS772T450X8L | Cornell Dubilier Electronics (CDE) | CAP ALUM 7700UF 450V SCREW | 95% | View |
| CGS772T200X5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 7700UF 200V SCREW | 74% | View |
| CGS782T200W4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 7800UF 200V SCREW | 64% | View |
| CGR762U050V3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 7600UF 50V SCREW | 63% | View |
| E36D251LPN782TEE3U | United Chemi-Con | CAP ALUM 7800UF 250V SCREW | 61% | View |
Submit your RFQ for CGH772T450X8L and get a quote within 24 hours.
