Cornell Dubilier Electronics (CDE)
CAP ALUM 6000UF 350V SCREW

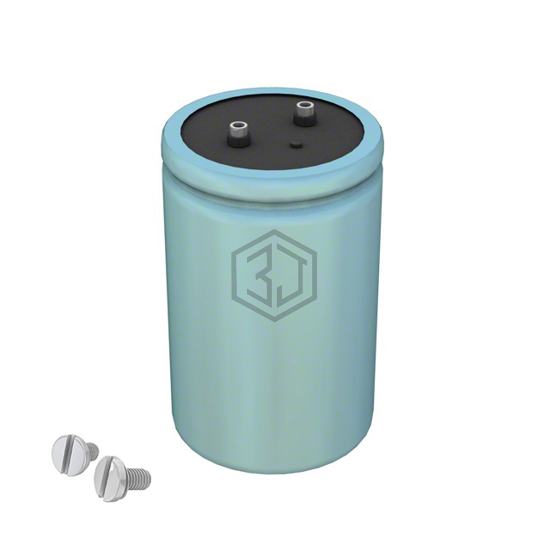

CGH602T350X4L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 6000UF 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,467
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6000 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 32.3mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 13.038 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.625" (117.48mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211015602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6000UF 350V SCREW | 100% | View |
| MAL211056602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6000UF 400V SCREW | 91% | View |
| MAL211036602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6000UF 400V SCREW | 91% | View |
| MAL211077602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6000UF 450V SCREW | 84% | View |
| MAL211083602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6000UF 250V SCREW | 78% | View |
| 500C602T500DG2HS | Cornell Dubilier Electronics (CDE) | CAP ALUM 6000UF 500V SCREW | 77% | View |
Submit your RFQ for CGH602T350X4L and get a quote within 24 hours.
