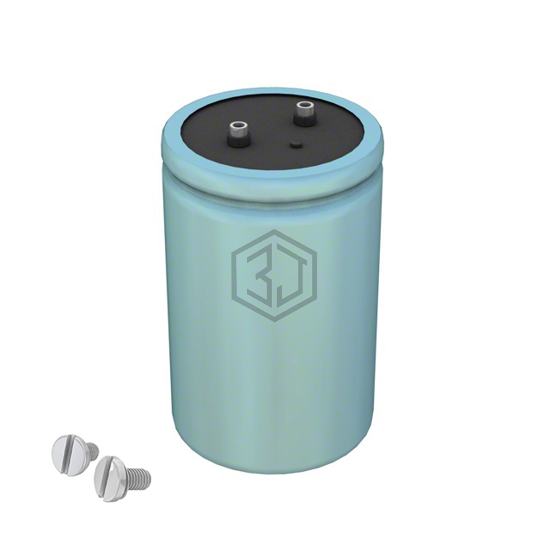

Cornell Dubilier Electronics (CDE)
CAP ALUM 5700UF 350V SCREW
CGH572T350X4L is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 5700UF 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,811
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5700 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 32.5mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.669 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.625" (117.48mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36F401CSN572MEA5U | Chemi-Con | CAP ALUM 5.7MF 20% 400V SCREW CH | 91% | View |
| E36L401CVN582MEA5U | Chemi-Con | CAP ALUM 5.8MF 20% 400V SCREW CH | 90% | View |
| E36L401CSN582MEA0Q | Chemi-Con | CAP ALUM 5.8MF 20% 400V SCREW CH | 90% | View |
| E36D251CPN572TEE3U | United Chemi-Con | CAP ALUM 5700UF 250V SCREW | 78% | View |
| 36DX582G100BC2A | Vishay Sprague | CAP ALUM 5800UF 100V SCREW | 54% | View |
| 36DX582G040AB2A | Vishay Sprague | CAP ALUM 5800UF 40V SCREW | 54% | View |
